Plotting 3D images with Rinearn3D using Ted Cline’s new ezGal250218e.py script 19/2/2025 to generate Rinearn3D mesh CSV data file from all viable ezRA NPZ and EZB data files 060124-011124

The ezGal510 plot needs a lot of data to fill, so it is hard to avoid data gaps.

The plots below are based on a substantial data set collected using the LRO-H1 Ptarmigan Dipole Array between 060124-011124. The data is comprised of 276 .txt data files, each covering 24 hour period. Individual data points are 15 seconds integration time (31,000 integration on ezRA on LRO-H1).

The purpose of the ezGal510 plot is to plot interpolated velocity against galactic longitude.

To use this, I ran:

py  ..\ezRA\ezGal250218e.py  .  -ezGal510Csv 1  -ezGalPlotRangeL 510 510

This produces a file called ezGal510velGLonMsh.csv

Open Rinearn3D in the normal way and then plot the file ezGal510velGLonMsh.csv choosing Z axis.

Andy

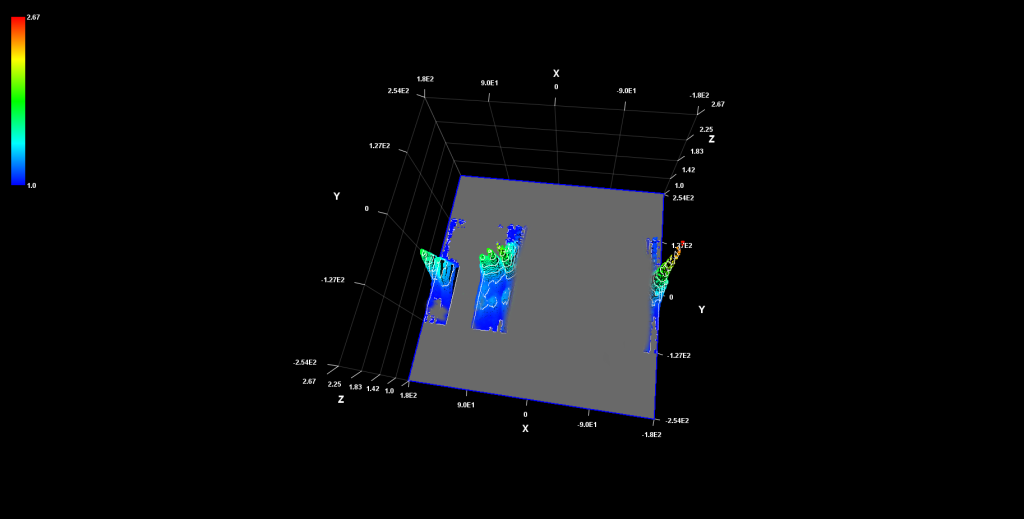

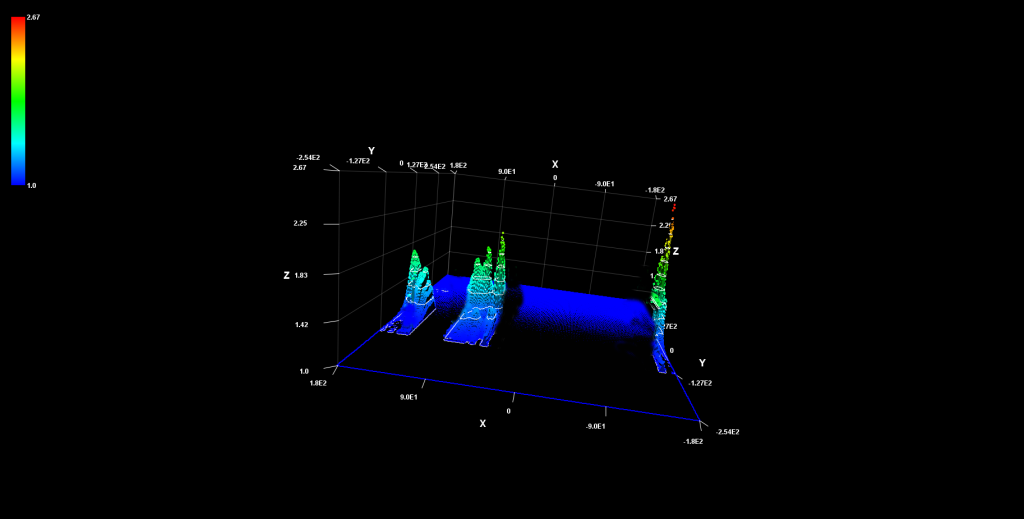

Plotting 3D images with Rinearn3D using Ted Cline’s new ezGal250218e.py script 19/2/2025 to generate Rinearn3D mesh CSV data file from all viable ezRA NPZ and EZB data files 060124-011124:

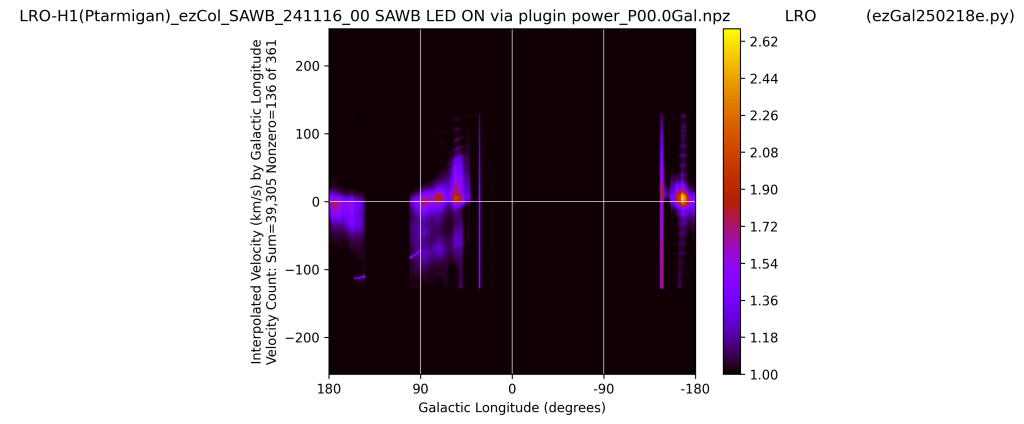

2D velocity plot from this data for comparison:
